Product Description

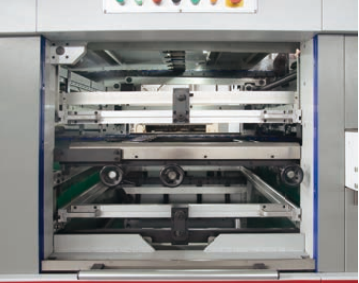

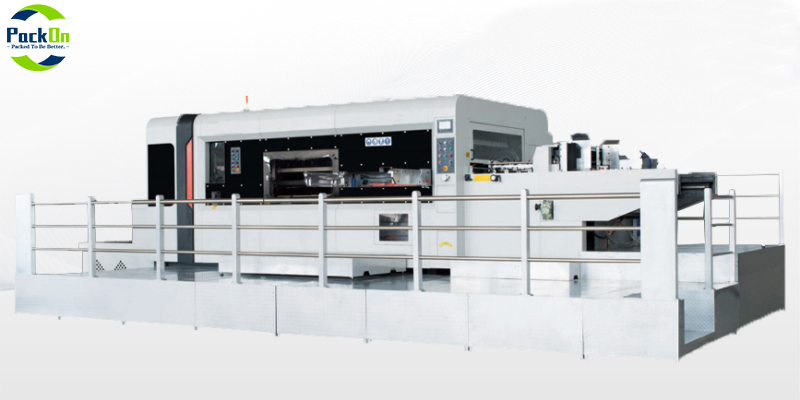

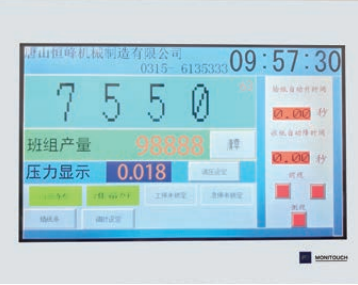

HF-1300MF/1500MF/1700MF the fully automatic waste-clearing die-cutting machine is a special equipment developed by our company based on the superior performance of similar products at home and abroad, suitable for color box and color box die-cutting. This machine uses high-strength paper gripper row, and the open paper gripper mechanism can adapt to the front and rear positioning and side positioning mechanism of various types of board paper and corrugated paper to ensure the die-cutting accuracy of paper. It is equipped with high-precision intermittent mechanism; fast-acting pneumatic clutch and pneumatic plate lock. Using programmable controller and human-machine interface, the machine's working speed, number of processed sheets, and total running time are digitally displayed; the machine's fault display makes troubleshooting very convenient. The main motor is controlled by a frequency converter, with stepless speed regulation and stable operation. Sensors and safety devices are installed in many places on this machine to ensure the normal operation of the machine and personal safety. The die-cutting pressure is easy to adjust, and selective non-gripper die-cutting can be performed, making this machine a cost-effective product.
